Installing a double sink drain with a dishwasher can seem hard. But it is not as tough as it looks. With some tools, parts, and patience, you can do it yourself. This guide will help you step-by-step. Even if you have little plumbing experience, you can follow along easily.
What You Need Before Starting
Before you start, gather all the tools and parts. Having everything ready will make the job faster.
- Double sink drain kit (includes drain pipes and fittings)
- Dishwasher drain hose
- Sink drain assembly
- P-trap kit
- Plumber’s putty or silicone sealant
- Pipe wrench or adjustable pliers
- Bucket or container (to catch water)
- Screwdriver
- Teflon tape (for sealing threads)
- Hacksaw (if you need to cut pipes)
- Towels or rags
Step 1: Turn Off Water and Power
Safety first. Turn off the water supply to the sink. Also, switch off power to the dishwasher. You don’t want leaks or electric shocks while working.
Step 2: Remove Old Drain Pipes
Place a bucket under the pipes to catch water. Use a wrench to loosen the slip nuts. Remove the old drain pipes and clean the sink drain openings.
Step 3: Install the Sink Strainers
Each sink bowl has a hole for the drain. Put plumber’s putty around the drain opening. Insert the sink strainer and press down firmly. From below, screw on the locking nut tightly. Wipe away extra putty around the edge.
Step 4: Connect the Tailpieces
Attach tailpieces to each sink strainer. Tailpieces are straight pipes that connect the sink drain to the drain assembly. Tighten the slip nuts by hand. Then use pliers to make them snug, but do not overtighten.
Step 5: Install the Double Sink Drain Tee
This is the part that connects both sink drains into one pipe. Attach the tee fitting to one tailpiece. Then connect the other tailpiece to the side inlet of the tee. Make sure all slip nuts are tight and aligned.
Step 6: Connect the Dishwasher Drain Hose
Find the dishwasher drain inlet on the tee fitting. It is a smaller side pipe. Slide the dishwasher drain hose onto the inlet. Use a hose clamp to secure it. Tighten the clamp with a screwdriver so it won’t leak.
Step 7: Attach the P-Trap
The P-trap is a curved pipe that stops sewer gases from coming up. Connect the P-trap to the bottom of the tee fitting. Then connect the other end of the P-trap to the drain pipe going into the wall. Use slip nuts and tighten them properly.
Step 8: Check Pipe Lengths and Cut if Needed
If pipes are too long, cut them with a hacksaw. Measure carefully before cutting. Smooth any rough edges with sandpaper or a file. Proper pipe length prevents leaks and keeps your drain system neat.
Step 9: Seal All Connections
Wrap Teflon tape around any threaded pipe ends. This helps prevent leaks. You can also apply silicone sealant around the sink strainers if you want extra sealing.
Step 10: Test the Drain System
Turn on the water supply. Let water run in both sinks. Watch for leaks at every connection. Also, run the dishwasher drain cycle to check hose connection. If you see leaks, tighten the nuts or clamps more.

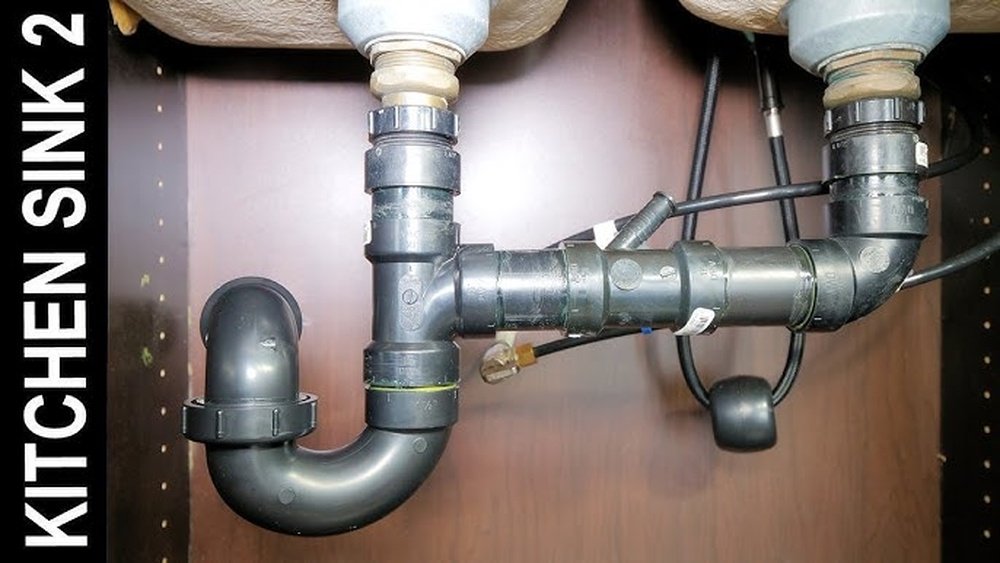

Credit: www.youtube.com
Tips for a Smooth Installation
- Work slowly and carefully. Rushing can cause mistakes.
- Keep towels handy to clean spills quickly.
- Make sure pipes are aligned to avoid stress on fittings.
- If unsure, take pictures before removing old pipes. It helps you remember how to put things back.
- Use plumber’s putty sparingly. Too much can cause mess.
Credit: www.arcsite.com
Common Mistakes to Avoid
- Not turning off water supply before starting.
- Over-tightening slip nuts, causing cracks.
- Skipping the P-trap installation.
- Not securing dishwasher drain hose properly.
- Ignoring leaks during the test phase.
Why Proper Drain Installation Matters
A good drain system prevents leaks and bad smells. It keeps your kitchen clean and safe. Connecting the dishwasher drain correctly stops water backup. It also helps your dishwasher work better. Taking time to install the drain right saves money on repairs later.
Summary Table: Key Parts and Their Roles
| Part | Purpose |
|---|---|
| Sink Strainer | Filters debris and connects sink to drain pipes |
| Tailpiece | Connects sink strainer to drain tee |
| Double Sink Drain Tee | Joins two sink drains and dishwasher drain |
| Dishwasher Drain Hose | Drains dishwasher water to sink drain |
| P-Trap | Keeps sewer gases out and traps debris |
Final Thoughts
Installing a double sink drain with a dishwasher is doable. Take your time and follow the steps carefully. With the right tools and parts, you can finish the job yourself. Always check for leaks before finishing. This helps avoid future problems. Good plumbing work keeps your kitchen clean and running smoothly.
Frequently Asked Questions
How Do I Connect A Dishwasher To A Double Sink Drain?
Use a branch tailpiece or a dishwasher tee fitting to connect the dishwasher drain hose to the double sink drain pipe. Ensure the connection is tight and sealed to avoid leaks.
What Tools Are Needed To Install Double Sink Drains?
You will need a wrench, plumber’s putty, pipe cutter, screwdriver, and plumber’s tape. These tools help secure pipes and prevent leaks.
Can I Install A Double Sink Drain Without A Plumber?
Yes, with basic plumbing knowledge and tools, you can install a double sink drain yourself. Follow instructions carefully and check for leaks afterward.
How To Prevent Leaks In Double Sink Drain Installation?
Apply plumber’s putty or silicone around sink drains and tighten all connections securely. Test the drain with water to ensure no leaks are present.
