Installing an air gap under your sink is important. It helps keep your water clean. It stops dirty water from going back into your dishwasher. If you want to do it yourself, this guide will help you.
What Is an Air Gap?
An air gap is a small device. It fits on top of your sink or countertop. It connects to your dishwasher and your drain. The air gap makes sure water flows the right way. It stops dirty water from going back into your dishwasher.
Many local laws ask for an air gap. It is a safety device. It keeps your drinking water safe from germs.
Tools and Materials You Need
Before you start, get these tools and materials ready:
- Air gap kit (comes with air gap and hoses)
- Drill with a drill bit (usually 1 1/4 inch)
- Adjustable wrench
- Screwdriver
- Plumber’s putty or silicone sealant
- Towel or small bucket (to catch water)
Step 1: Choose the Air Gap Location
First, find a good spot for the air gap on your sink or countertop.
It should be near the faucet but not too close. Usually, it goes next to the faucet or near the back of the sink.
Check if there is a hole you can use. If not, you will need to drill one.
Step 2: Drill a Hole (If Needed)
If your sink or countertop does not have a hole, drill one.
Use a drill bit size that fits the air gap base. Most air gaps need a 1 1/4 inch hole.
Be careful. Drill slowly to avoid cracks.
Put a towel under the sink to catch any water or debris.
Step 3: Install the Air Gap on the Sink
Put plumber’s putty or silicone sealant around the base of the air gap.
Insert the air gap into the hole you drilled or found.
Under the sink, put the washer and nut on the air gap pipe.
Tighten the nut by hand, then use a wrench to make it snug.
Do not overtighten to avoid damage.
Step 4: Connect the Dishwasher Hose
Find the hose coming from your dishwasher.
This hose brings dirty water to the drain.
Connect this hose to the smaller fitting on the air gap.
Use a hose clamp and tighten it with a screwdriver.
Make sure the connection is tight and secure.
Step 5: Connect the Drain Hose
Find the larger hose on the air gap.
This hose goes to the sink drain or garbage disposal.
Attach the hose to the drain pipe or garbage disposal inlet.
Use a hose clamp and tighten it well.
Step 6: Check All Connections
Look at all the hoses and connections.
Make sure all clamps are tight.
Check that the air gap is firmly attached to the sink.
Credit: www.hunker.com
Step 7: Test the Air Gap
Turn on the dishwasher and run a short cycle.
Watch under the sink for any leaks.
If you see water leaking, tighten the clamps.
Check the air gap on the sink. Water may come out of the top during draining. This is normal.
It shows the air gap is working correctly.
Why Is an Air Gap Important?
An air gap stops dirty water from flowing back into your dishwasher.
This keeps your dishes clean and safe.
It protects your home water supply from germs.
Many building codes require an air gap for dishwashers.

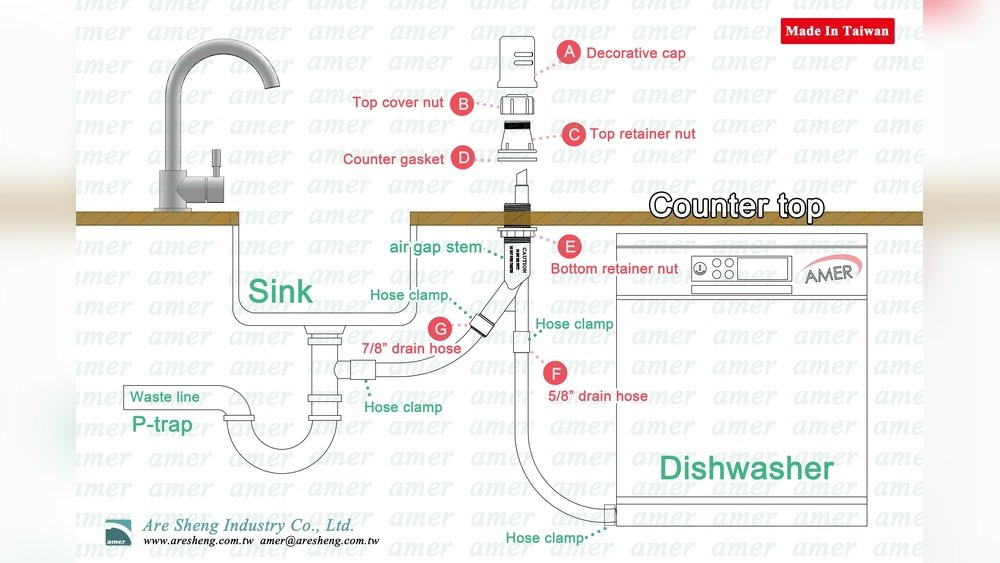

Credit: www.aresheng.com.tw
Tips for a Good Installation
- Measure twice before drilling the hole.
- Use plumber’s putty to stop water leaks.
- Do not bend or pinch the hoses.
- Keep the hoses away from sharp edges.
- Check for leaks after each use.
Common Problems and Solutions
| Problem | Cause | Solution |
|---|---|---|
| Water leaks under sink | Loose hose clamps or nut | Tighten clamps and nuts carefully |
| Water comes out of air gap top | Normal during dishwasher drain | No action needed; it means air gap works |
| Dishwasher does not drain | Hose clogged or bent | Check and straighten or clean hose |
| Water backs up into dishwasher | Air gap not installed or broken | Install or replace air gap |
Frequently Asked Questions
What Is An Air Gap Under The Sink?
An air gap prevents dirty water from flowing back into clean water. It is a small device installed near the sink.
Why Install An Air Gap For My Dishwasher?
It stops dirty water from contaminating your dishwasher. This keeps your dishes clean and safe.
Can I Install An Air Gap Myself?
Yes, with basic tools and instructions, most homeowners can install it. Just follow the steps carefully.
Where Should The Air Gap Be Placed?
Place it on the sink or countertop near the dishwasher. It must be higher than the drain.
Conclusion
Installing an air gap under your sink is simple. It protects your dishwasher and water supply.
Follow these steps carefully. Use the right tools and parts.
If you do not feel confident, call a plumber.
But many people can do this job by themselves. It helps keep your home safe.
Remember: A good air gap means clean dishes and clean water.
